Review MSI MPG X570 GAMING EDGE WIFI

Introducción

MSI MPG X570 GAMING EDGE: NUESTRA OPINION

DISEÑO Y PRESENTACION - 10
CARACTERISTICAS TECNICAS - 10
PRECIO - 9
ILUMINACION - 10
OVERCLOCKING - 10
PRESTACIONES - 9

9.7

La placa base MSI MPG X570 GAMING EDGE es una de las mejores del mercado sin duda en su rango de precios por sus características TOP, excelente estabilidad, posibilidades de overclocking e iluminación RGB.

User Rating: Be the first one !

La placa base MSI MPG X570 GAMING EDGE Wifi incorpora el nuevo socket AMD X570 con soporte para la segunda y tercera generación de AMD Ryzen ™ / Ryzen ™ con Radeon ™ Vega Graphics. La iluminación está confiada a Mystic Light Extensión siendo compatible con las tiras de Led RGB y Rainbow






Review MSI MPG X570 GAMING EDGE WIFI 1





Muchísimas gracias a MSI por enviarnos la placa MSI MPG X570 GAMING EDGE WIFI para esta review



Resultado de imagen de MSI LOGO RAZORMAN







MSI MPX570 GAMING EDGE WIFI: CARACTERISTICAS TECNICAS



Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® X570 Chipset

Memory

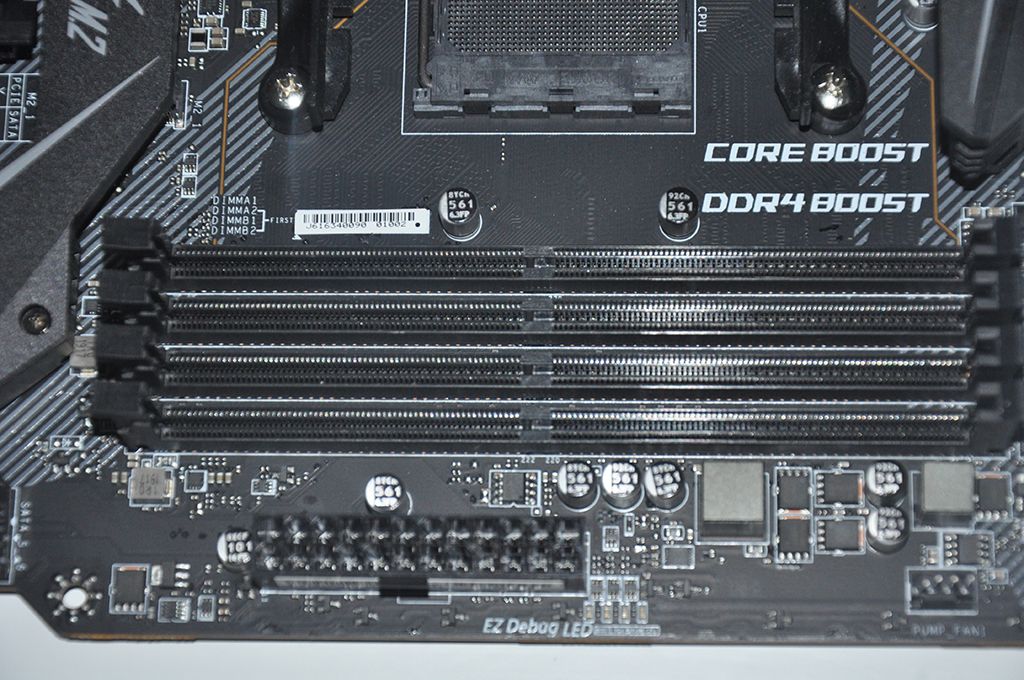

  • 4x DDR4 memory slots, support up to 128GB
    • s3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

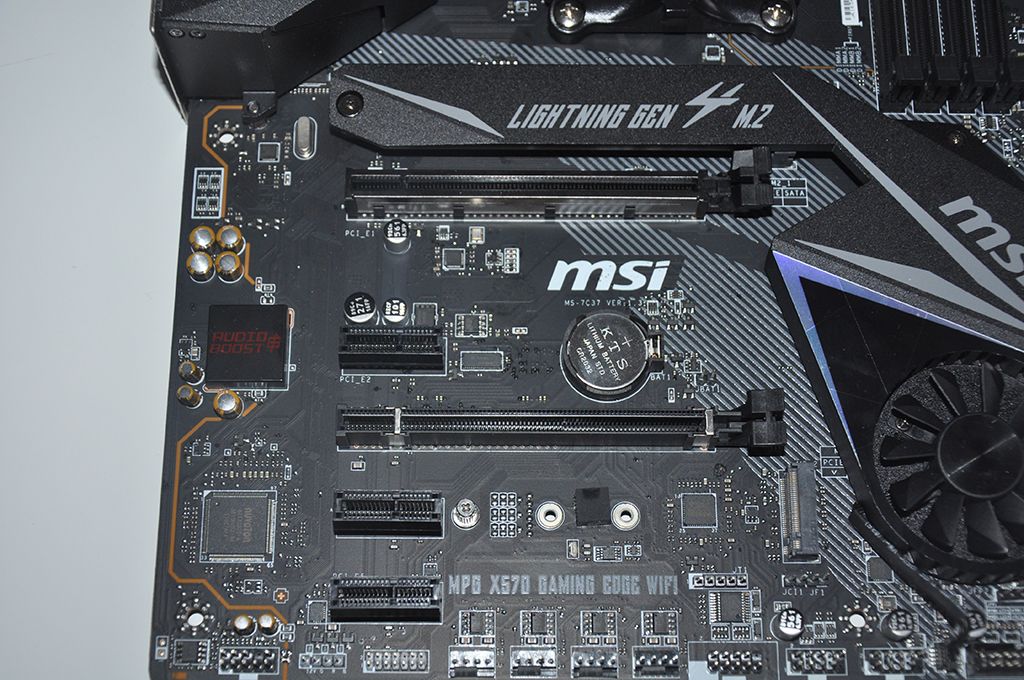

Expansion Slots

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
  • 3x PCIe 3.0 x1 slots1
  1. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
  2. The speeds may vary for different devices

Onboard Graphics

  • 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  2. Maximum shared memory of 2048 MB

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® X570 Chipset

  • 4x SATA 6Gb/s ports(SATA3-SATA6)
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD® Processor)
      – Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      – Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      – Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset)
      – Supports PCIe 3.0 x4 and SATA 6Gb/s
      – Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061

  • 2x SATA 6Gb/s ports (SATA1, SATA2)

RAID

AMD® X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

  • 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

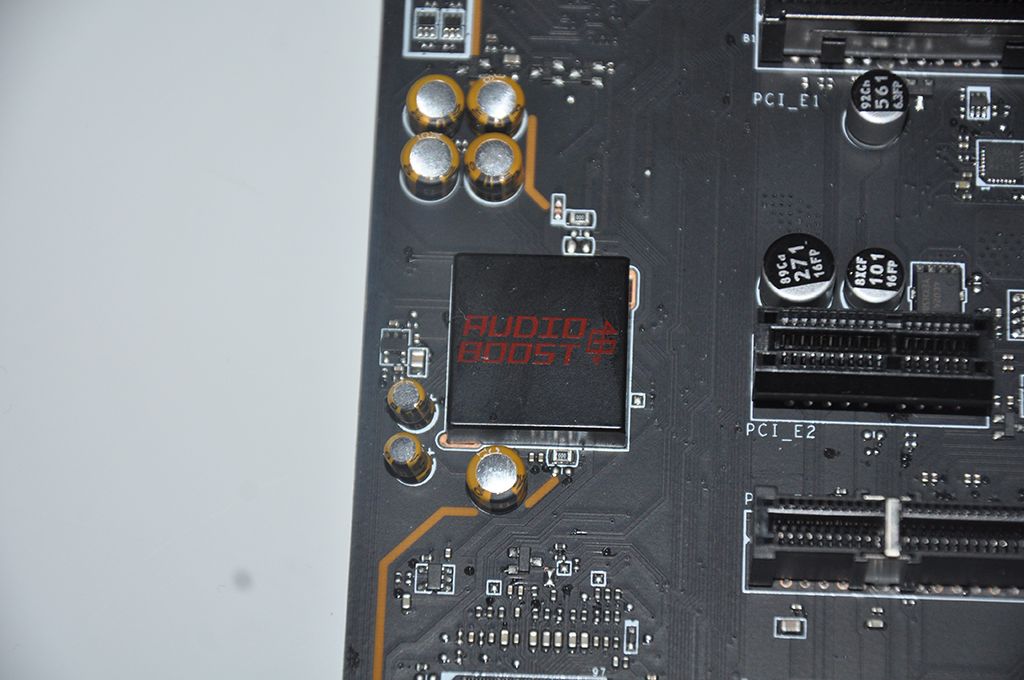

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

LAN

  • 1x Realtek® 8111H Gigabit LAN Controller

WiFi & Bluetooth

Intel® Dual Band Wireless-AC 3168

  • Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
  • Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
  • The Wireless module is pre-install in the M2_3 (Key-E) slot

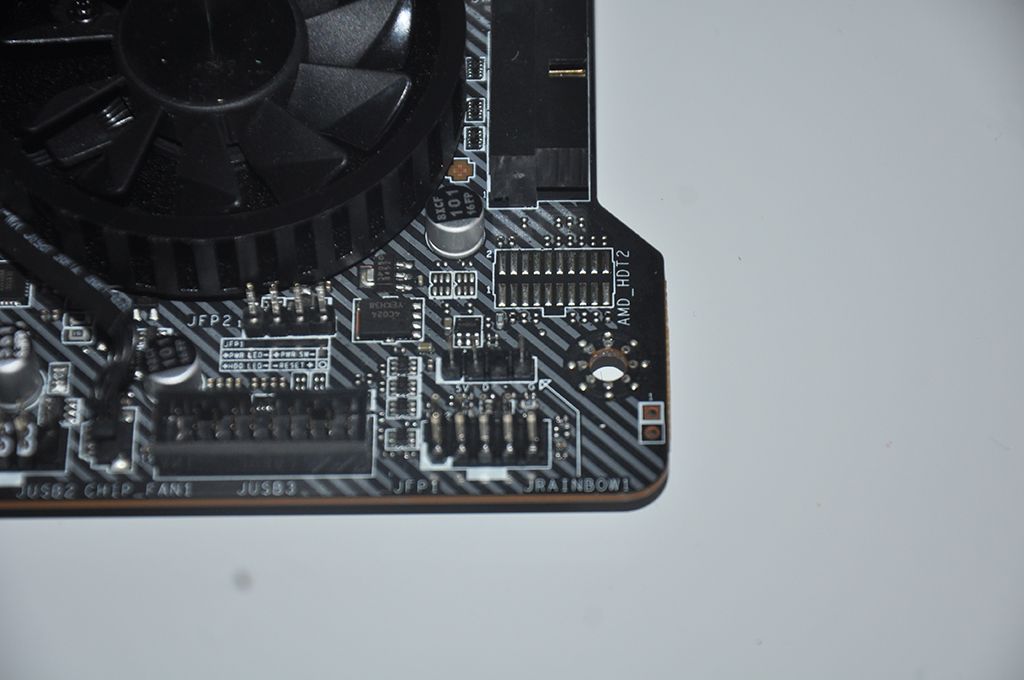

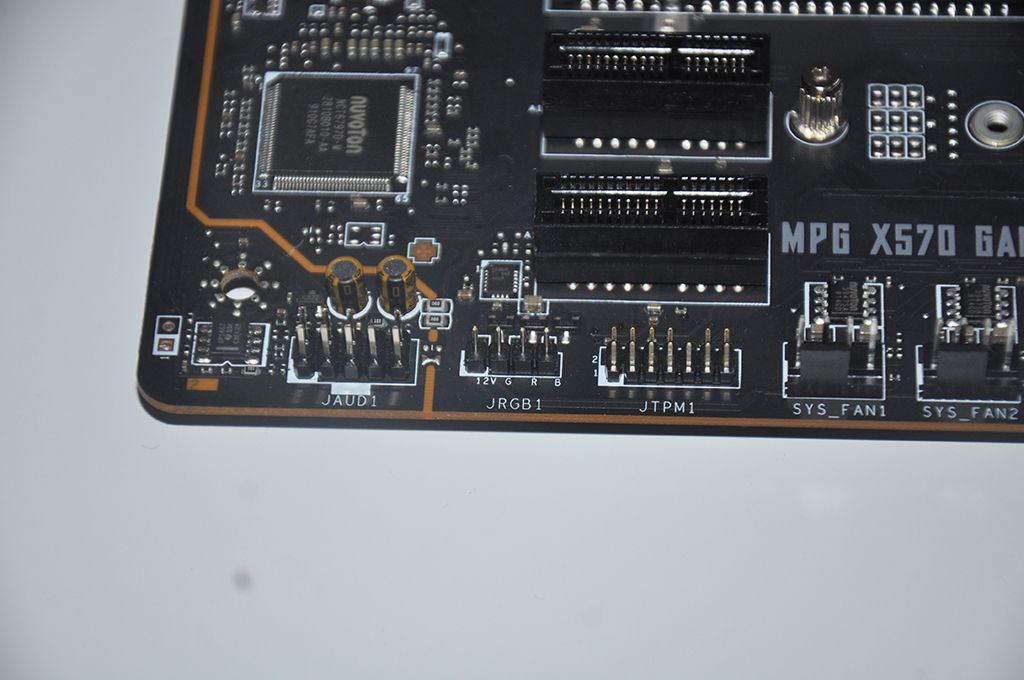

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors

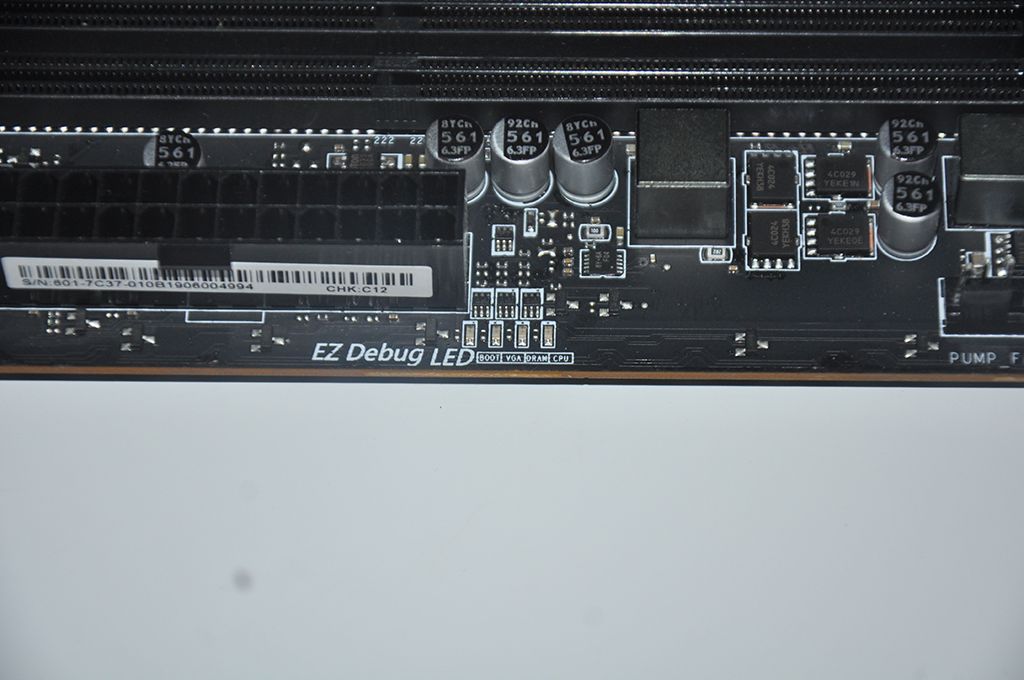

  • 4x EZ Debug LEDs

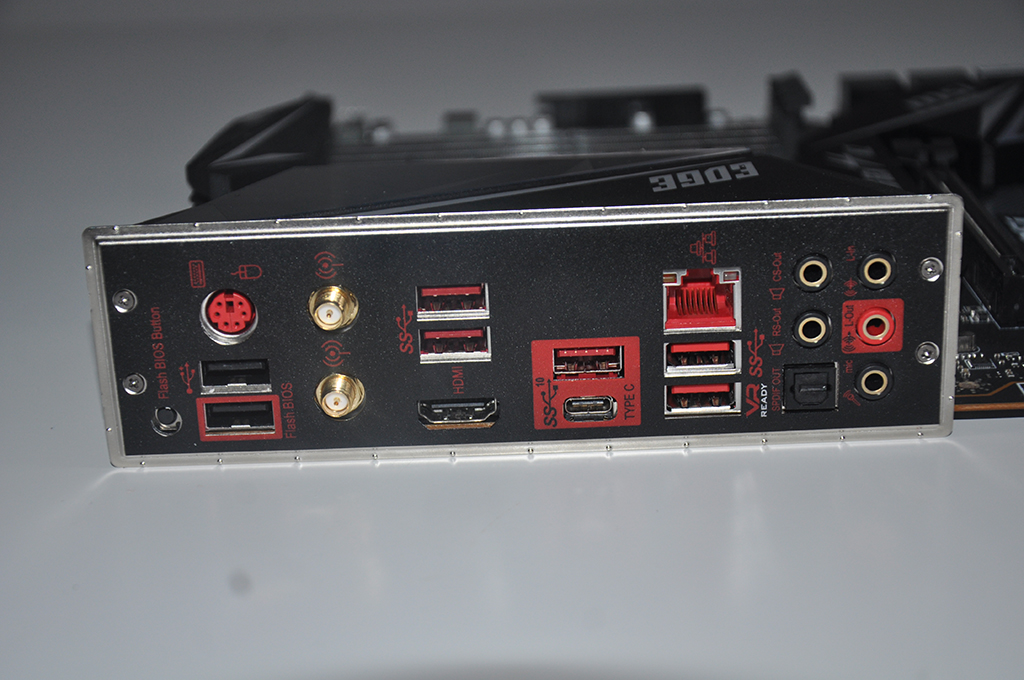

Back panel ports

  1. Keyboard / Mouse
  2. Wireless / Bluetooth
  3. USB 3.2 Gen1 Type-A
  4. LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen2 Type-A + C
  10. USB 3.2 Gen2 Type-A
  11. Optical S/PDIF out
MEG X570 GODLIKE

Dimensions

  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit
