Review MSI MEG Z390 ACE

Introducción

La placa base MSI MEG Z390 ACE es compatible con los procesadores Intel de  8ª y 9ª generación , e incorpora el chipset z390 , con soporte de memorias hasta 4500 Mhz (OC)



Review MSI MEG Z390 ACE 1





Muchísimas gracias a MSI por enviarnos la placa base MSI MEG 390 ACE para la review



Review MSI MEG Z390 ACE 2







MSI MEG Z390 ACE: CARACTERISTICAS TECNICAS



Especificaciones

  • Processor
    • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Chipset
    • Intel® Z390 Chipset

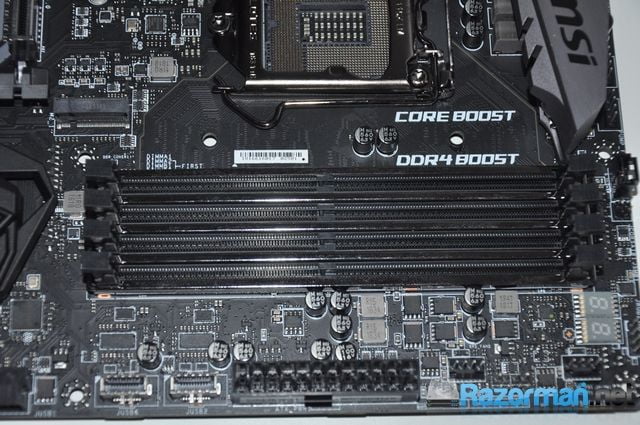

  • Memory
    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
  • Slots
    • 3 x PCIe 3.0 x16 slots
    • Support x16/ x0/ x0, x8/ x8/ x0, x8/ x4/ x4 modes
    • 3 x PCIe 3.0 x1 slots
  • Multi-GPU
    • Supports 2-Way NVIDIA® SLI™ Technology
    • Supports 3-Way AMD® CrossFire™ Technology
  • Wirsless LAN & Bluetooth®
    • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
    • Supports Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, 5
  • Storage
    • Intel® Z390 Chipset
    • 6 x SATA 6Gb/s ports1
    • 3 x M.2 slot (Key M)1
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
      • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready2
    • M.2 slots and SATA ports share the bandwidth.
    • Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • RAID
    • Intel® Z390 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices
  • USB
    • Intel® Z390 Chipset
    • 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (4 Type-A ports on the back panel, 2 Type-C internal connectors)
    • 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
    • ASMedia® ASM1042 Chipset
    • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
    • ASMedia® ASM3142 Chipset
    • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A, 1x Type-C) on the back panel
  • Audio
    • Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
  • LAN
    • 1 x KillerTM E2500 Gigabit LAN controller
  • Internal connectors
    • 1 x 24-pin ATX main power connector
    • 2 x 8-pin ATX 12V power connectors

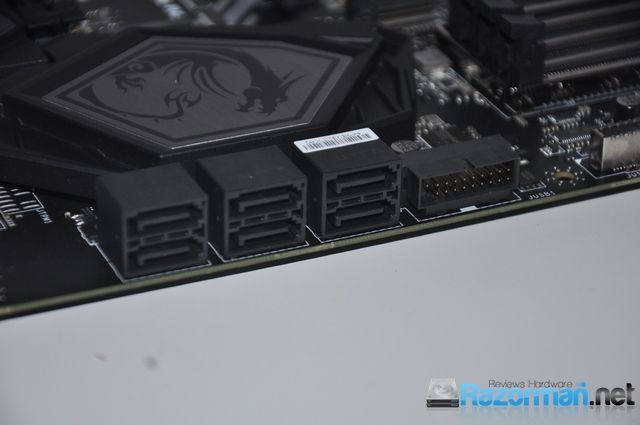

    • 6 x SATA 6Gb/s connectors
    • 3 x M.2 slots
    • 2 x USB 3.1 Gen2 Type-C ports
    • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1 x 4-pin CPU fan connector
    • 1 x 4-pin Water Pump connector
    • 5 x 4-pin system fan connectors
    • 1 x Front panel audio connector

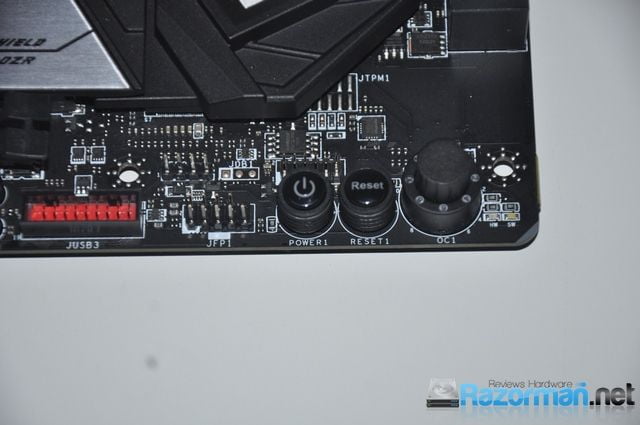

    • 2 x System panel connectors
    • 1 x Chassis Intrusion connector
    • 2 x 4-pin RGB LED connectors
    • 1 x 3-pin RAINBOW LED connector
    • 1 x 3-pin CORSAIR LED connector
  • Back panel ports
    • Clear CMOS Button
    • USB 2.0 Ports
    • Killer™ E2500 Gigabit LAN
    • Wi-Fi /Bluetooth Antenna Connectors
    • HD Audio Connectors
    • BIOS FLASHBACK+ Button
    • USB 3.1 Gen2 Ports Type A+C
    • USB 3.1 Gen2 Ports
    • USB 3.1 Gen2 Ports
    • Optical S/PDIF-Out

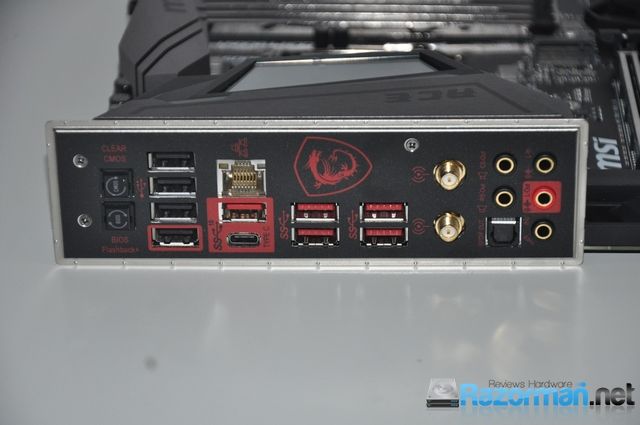

    • MSI MEG Z390 ACE back panel ports
  • Dimensions
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    • ATX Form Factor
  • Mounting
    • 9 mounting holes
  • Operating System
    • Support for Windows® 10 64-bit
