Review MSI X299 SLI PLUS

Introducción

Comenzamos una nueva colaboración con MSI que para esta ocasión nos ha enviado una interesante placa para el nuevo socket X299 de Intel, con el modelo MSI X299 SLI Plus

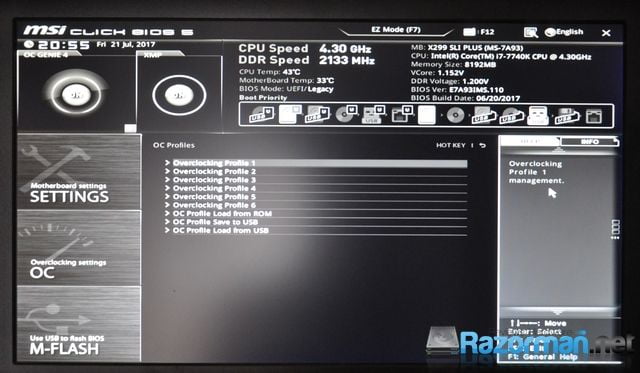

Como decimos incorpora el chipset X299 de Intel y soporte de memoria de cuádruple canal hasta DDR4-4133(OC)+, o canal dual DDR4-4500(OC)+ y funciones avanzadas pero simples de overclocking gracias a OC Genie 4.









Muchísimas gracias a MSI por enviarnos esta placa base MSI X299 SLI Plus para la review









MSI X299 SLI PLUS: CARACTERISTICAS TECNICAS





  • CPU

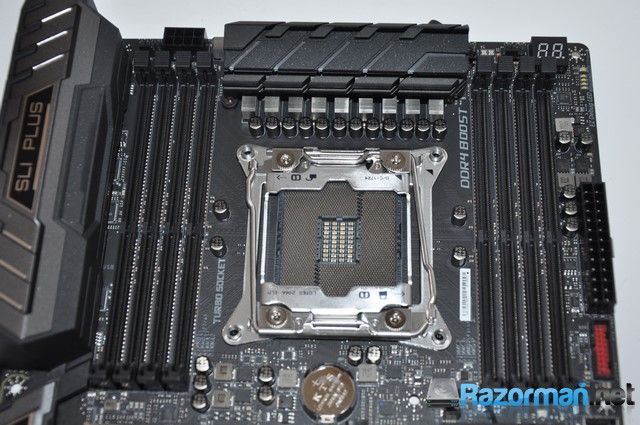

    • Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket
    • * This function will be supported depend on the CPU.
  • Chipset
    • Intel® X299 Chipset
  • Main Memory
    • 8 x DDR4 memory slots, support up to 128GB
    • X-series processor support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz*

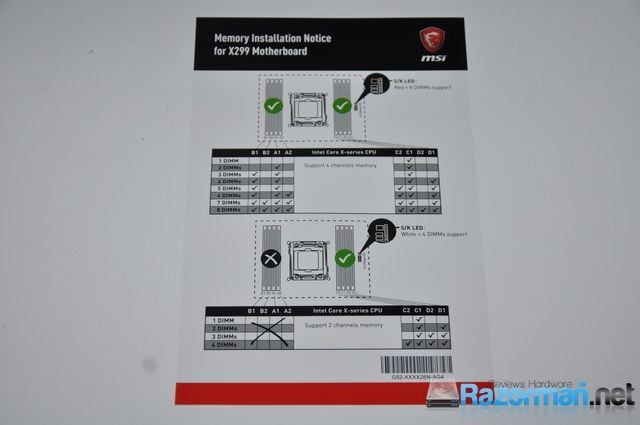

    • Quad channel memory architecture with the CPU that supports up to 4-channels DDR4**
    • Dual channel memory architecture with the CPU that supports up to 2-channels DDR4**
    • Supports Intel® Extreme Memory Profile (XMP)
    • * For the latest information about memory, please visit http://www.msi.com
    • ** Please refer the DIMM Slots section for more details.
  • Slots
    • 4 x PCIe 3.0 x16 slots
    • Support x16/x16/x8 mode with the 44-lane CPU.*
    • Support x16/x8/x4 modes with the 28-lane CPU.*
    • Support x8/x8/x0, x8/x4/x4 modes with the 16-lane CPU.*
    • 2 x PCIe 3.0 x1 slots
  • Multi-GPU
    • Supports NVIDIA® SLI™ Technology
    • Supports AMD® CrossFire™ Technology
  • Storage
    • Intel® X299 Chipset

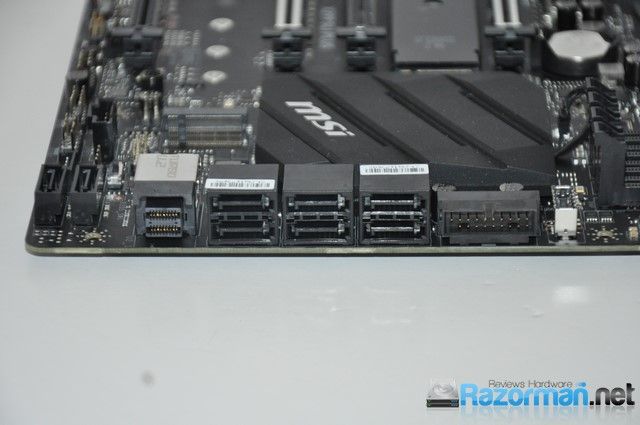

    • 8 x SATA 6Gb/s ports*

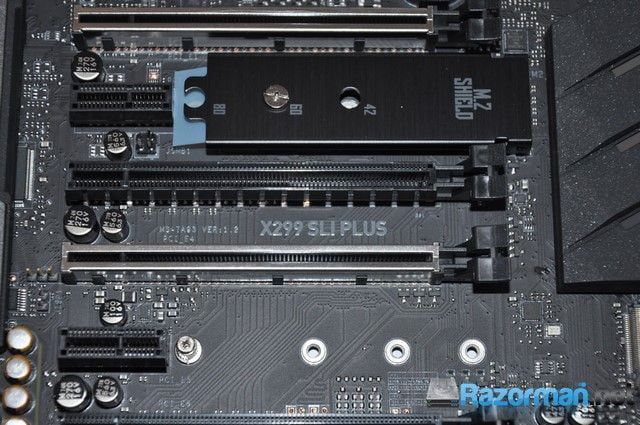

    • 2 x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1 slot supports 2242/ 2260 /2280 storage devices
    • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
    • Supports Intel® Optane™ Memory Ready for all M.2 slots
    • 1 x U.2 port ***
    • Supports PCIe 3.0 x4 NVMe storage
    • Supports Intel® Smart Response Technology for Intel Core™ processors
    • * M.2 slots and SATA ports share the same bandwidth. Please refer to user manual for U.2, M.2 & SATA combination table.
    • ** Please refer to user manual for Intel® Optane™ Memory Configuration.
    • *** PCI_E2 shares bandwidth with U2_1. If you install a PCE_E2 device, the U2_1 will be disabled.
    • **** The functions will be supported depend on the CPU.
  • RAID
    • Intel® X299 Chipset
    • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID1 for M.2 PCIe storage devices*
    • * M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to user manual for Creating a M.2 PCIe SSD RAID with M.2/Optane Genie.
  • USB
    • ASMedia® ASM3142 Chipset
    • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector)
    • ASMedia® ASM1074 Chipset
    • 3 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel
    • Intel® X299 Chipset
    • 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 Type-A port on the back panel, 4 ports available through the internal USB connectors)
    • 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • Audio

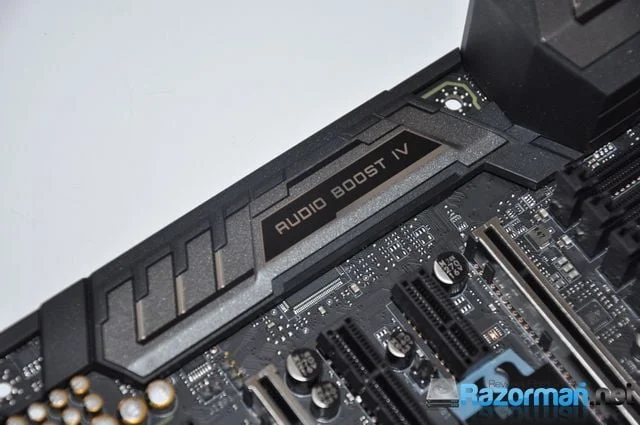

    • Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
  • LAN
    • 1 x Intel® I219-V Gigabit LAN controller
    • 1 x Intel® I211 Gigabit LAN controller
  • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector

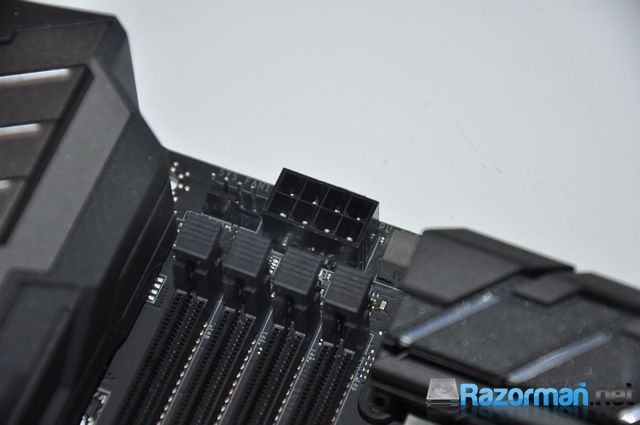

    • 1 x 8-pin ATX 12V power connector
    • 8 x SATA 6Gb/s connectors
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    • 1 x USB 3.1 Gen2 Type-C port
    • 1 x 4-pin CPU fan connector
    • 1 x 4-pin Water Pump connector
    • 4 x 4-pin system fan connectors
    • 2 x Front panel connectors
    • 1 x Front panel audio connector
    • 1 x RGB LED connector
    • 1 x TPM module connector
    • 1 x Virtual RAID on CPU connector
    • 1 x Thunderbolt add-on card connector

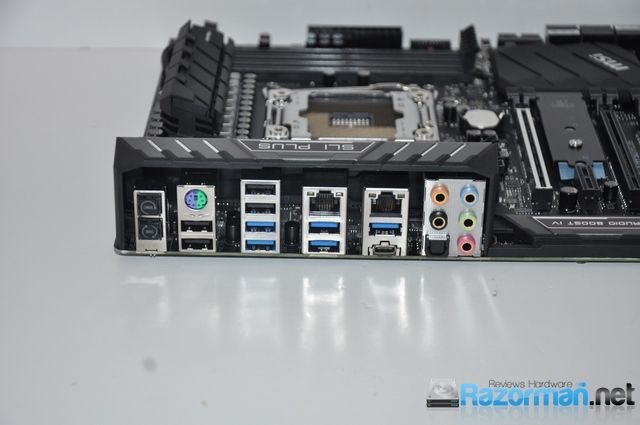

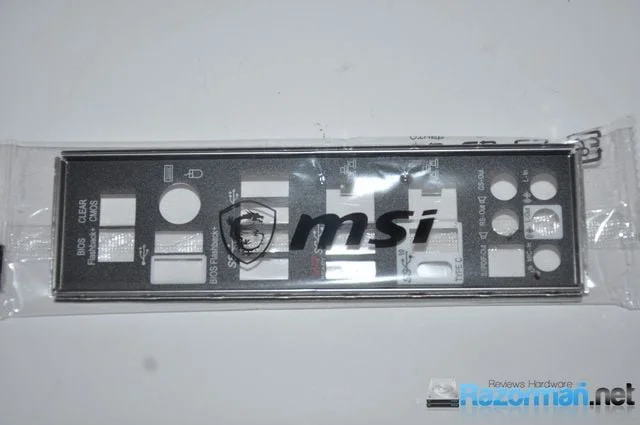

  • Back Panel I/O Ports
    • 1 x Clear CMOS button
    • 1 x BIOS FLSAHBACK+ button
    • 1 x PS/2 keyboard/ mouse combo port
    • 1 x BIOS FLASHBACK+ port
    • 4 x USB 2.0 Type-A ports
    • 1 x BIOS FLASHBACK+ port
    • 4 x USB 3.1 Gen1 Type-A ports
    • 2 x LAN (RJ45) ports
    • 1 x USB 3.1 Gen2 Type-A port
    • 1 x USB 3.1 Gen2 Type-C port
    • 5 x OFC audio jacks
    • 1 x Optical S/PDIF OUT connector
  • Dimension
    • 12 in. x 9.6 in. (30.5 cm x 24.3 cm)
    • ATX Form Factor
  • Mounting
    • 9 mounting holes
